UE Controls J6 Series Pressure Switches Model 258-274

https://www.doger.com/web/image/product.template/10380/image_1920?unique=b416adc

The J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants.

Use the section "Parameters M126- M160" located at the bottom of the page, in it you will find important data beforehand.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

Specifications for UE Controls J6 Series Pressure Switches Model 258-274

Pressure parameters . 258 -Set Point Range: 0 to 50 psi /Deadband: 1.5 to 2.5 psi /Over Range Pressure: 50 psi / Proof pressure: 75 psi or 266 -Set Point Range: 0 to 100 psi /Deadband: 2 to 5 psi /Over Range Pressure: 100 psi / Proof pressure: 150 psi or 270 -Set Point Range: 0 to 200 psi /Deadband: 2 to 5 psi /Over Range Pressure: 200 psi / Proof pressure: 250 psi
UEONLINE J6 Series Installation and Maintenance Manual.pdf
Download
UEONLINE J6 Series.pdf
Download
  • UL listed and cUL certified
  • Optional ATEX or GOST intrinsic safety compliance
  • Designed to meet Enclosure Type 4X
  • SPDT switch output
  • Adjustable deadband option for precise on-off control
  • Brass or welded stainless steel bellows sensors
  • External manual reset option

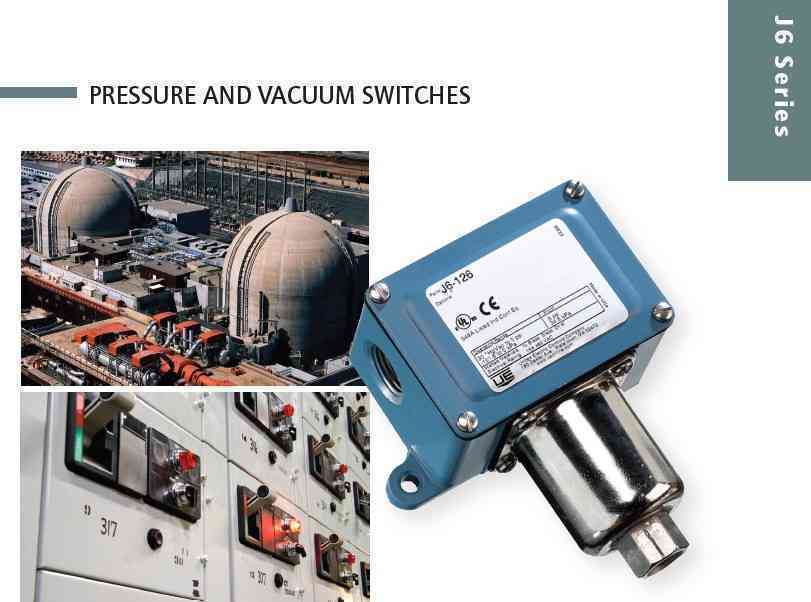

Product Image
