  2. Interruptores de presión de la serie J6 de UE Controls, modelos 126-160

Interruptores de presión de la serie J6 de UE Controls, modelos 126-160

https://www.doger.com/web/image/product.template/10342/image_1920?unique=20cf8a9

El J6 es un interruptor de presión confiable y sensible, diseñado originalmente para aplicaciones de aire instrumentado en plantas de proceso.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

Specifications for Interruptores de presión de la serie J6 de UE Controls, modelos 126-160

Pressure parameters . 126 -Set Point Range: 30 ”Hg Vac to 0 psi /Deadband: 0.2 to 0.8 ”Hg /Over Range Pressure: 3 psi / Proof pressure: 5 psi or 134 -Set Point Range: 30 ”Hg Vac to 20 psi /Deadband: 0.2 to 0.8 ”Hg /Over Range Pressure: 20 psi / Proof pressure: 25 psi or 136 -Set Point Range: 0 to 50” wc /Deadband: 3 to 6 ”wc /Over Range Pressure: 50 “wc / Proof pressure: 5 psi or 142 -Set Point Range: 0 to 18 psi /Deadband: 4 to 7 ”wc /Over Range Pressure: 18 psi / Proof pressure: 25 psi or 148 -Set Point Range: 0 to 40 psi /Deadband: 0.1 to 0.4 psi /Over Range Pressure: 40 psi / Proof pressure: 40 psi or 152 -Set Point Range: 0 to 50 psi /Deadband: 0.1 to 0.5 psi /Over Range Pressure: 50 psi / Proof pressure: 75 psi or 156 -Set Point Range: 3 to 100 psi /Deadband: 0.2 to 0.8 psi /Over Range Pressure: 100 psi / Proof pressure: 75 psi or 160 -Set Point Range: 50 to 180 psi /Deadband: 0.3 to 1 psi /Over Range Pressure: 180 psi / Proof pressure: 180 psi
UEONLINE J6 Series Installation and Maintenance Manual.pdf
Download
UEONLINE J6 Series.pdf
Download
  • UL listed and cUL certified
  • Optional ATEX or GOST intrinsic safety compliance
  • Designed to meet Enclosure Type 4X
  • SPDT switch output
  • Adjustable deadband option for precise on-off control
  • Brass or welded stainless steel bellows sensors
  • External manual reset option

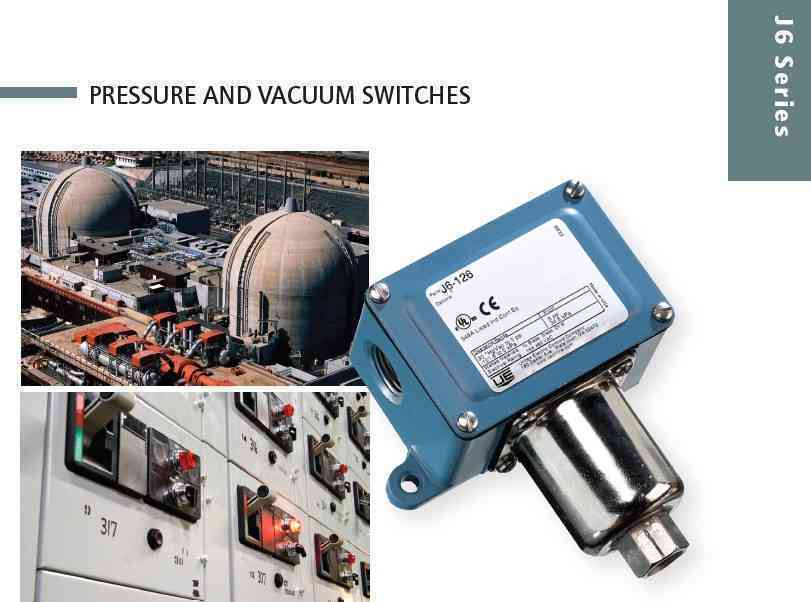

Product Image
Interruptores de presión de la serie J6 de UE Controls, modelos 126-160
