UE Controls J6 Series Pressure Switches Model 610-614

https://www.doger.com/web/image/product.template/10428/image_1920?unique=e89a8b8

The J6 is a reliable, sensitive pressure switch, originally designed for instrument air applications in process plants.

3 stainless steel piston with Buna N O-ring and 303 stainless steel 1/4” NPT (female) pressure connection (not recommended for gas service since drying of the O-ring can allow bleeding of the medium into the atmosphere)

  • Pressure parameters .

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

Its compact design and combination of set-point sensitivity and narrow or optional adjustable deadband, offers cost-saving solutions for a variety of applications. The J6 is ideally suited for a wide range of industrial processes such as alarm/shutdown and low/high service pressures. OEMs also utilize the J6 in machinery and equipment for threshold protection.

Specifications for UE Controls J6 Series Pressure Switches Model 610-614

Pressure parameters . 610 -Set Point Range: 75 to 1000 psi /Deadband: 30 to 150 psi /Over Range Pressure: 1000 psi / Proof pressure: 10,000 psi or 612 -Set Point Range: 125 to 3000 psi /Deadband: 40 to 250 psi /Over Range Pressure: 3000 psi / Proof pressure: 10,000 psi or 614 -Set Point Range: 500 to 6000 psi /Deadband: 50 to 400 psi /Over Range Pressure: 3000 psi / Proof pressure: 10,000 psi
UEONLINE J6 Series Installation and Maintenance Manual.pdf
Download
UEONLINE J6 Series.pdf
Download
  • UL listed and cUL certified
  • Optional ATEX or GOST intrinsic safety compliance
  • Designed to meet Enclosure Type 4X
  • SPDT switch output
  • Adjustable deadband option for precise on-off control
  • Brass or welded stainless steel bellows sensors
  • External manual reset option

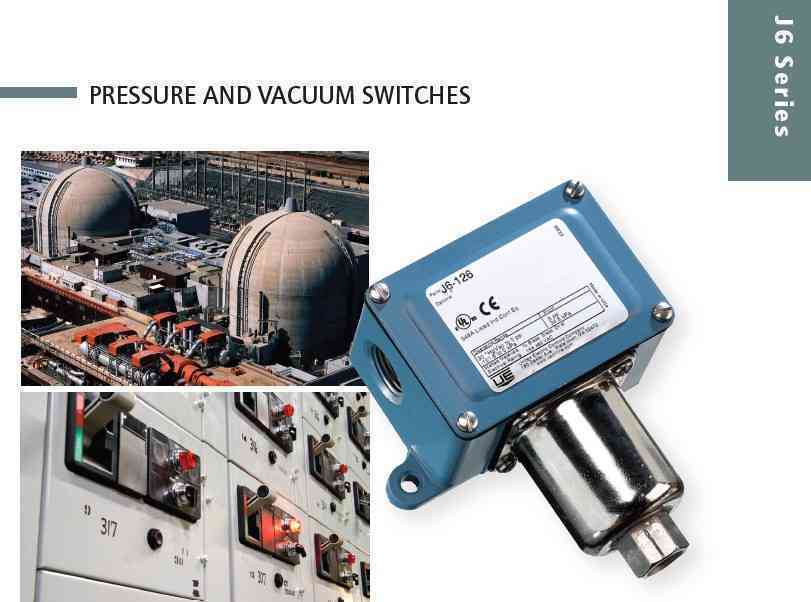

Product Image
UE Controls J6 Series Pressure Switches Model 610-614
