UE Controls J21k Differential pressure switch Model 16020

https://www.doger.com/web/image/product.template/10392/image_1920?unique=d6dab30

Brass bellows with 1/4” NPT (female) pressure connections

The J21K Series is simple to install and operate for alarm, safety and emergency shutdown applications requiring a higher switch sensitivity. It monitors the difference between two system pressures or vacuum using sealed, opposing bellows sensors.

    This combination does not exist.

    United Electric Controls
    Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

    The J21K's rugged design - with epoxy coated enclosure and sealed metal bellows - lends itself to exacting applications. Widely used in refrigeration (chiller) and compressor applications, the J21K can be used for filter status monitoring and proof of flow.



    No Documents Uploaded
    • Designed to meet Enclosure Type 4X (with watertight conduit fitting)
    • UL listed and cUL certified
    • Optional ATEX and Rostechnadzor (GOST-R) intrinsic safety compliance
    • Optional adjustable deadband
    • Single switch output
    • Opposing bellows design

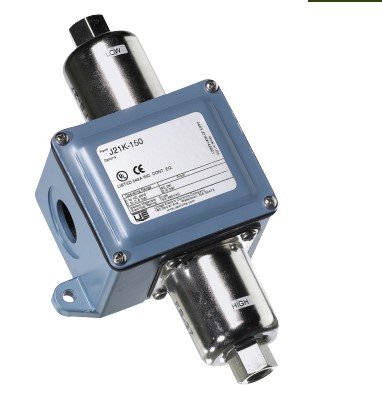

    Product Image
