UE Controls 54 Series Pressure switches (J54 Models 16009)

https://www.doger.com/web/image/product.template/10699/image_1920?unique=c8deb57

J54: NEMA 1 enclosure; One SPDT output; internal hex adjustment with no reference dial.

16009 - Set Point Range: 30 to 300 psi /Deadband: 10 to 30 psi /Over Range Pressure: 100 psi above set point / Proof pressure: 200 psi above set point max 600

Buna N diaphragm and O-Ring with 1/4” NPT (male) brass pressure connection; includes adjustable deadband microswitch.

    This combination does not exist.

    United Electric Controls
    Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

    OEMs can choose from standard models with a variety of options or work with our application engineers to custom design a product solution.
    Typical applications that utilize the 54 Series include medical and laboratory equipment, precision cutting machinery, fire protection, mobile hydraulic units, and heating equipment.

    Parameters available in the datasheet of the documents section


    UEONLINE 54 Series Datasheet_compressed.pdf
    Download
    • Compact size
    •  Choice of one or two switch outputs
    •  Reference dial or hex screw-type setting
    • Optional 1/2” NPT (male) by 1/8” NPT (female) polysulfone pressure connection
    • Optional external manual reset
    •  NEMA 1 or open frame (skeleton) versions for OEM applications
    •  Brass bellows models

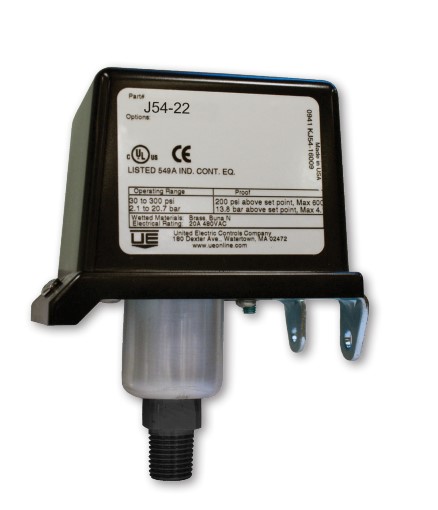

    Product Image
