UE Controls 400 Series pressure, vacuum, differential pressure and temperature switches (Type J402, dual switch output with internal hex screw adjustment, Models 356-376)

https://www.doger.com/web/image/product.template/10525/image_1920?unique=bac906b

The 400 Series is a versatile family of vacuum, pressure, differential pressure and temperature switches for applications that require single or multiple switching capabilities.

Welded 316L stainless steel bellows and 1/4” NPT (female) pressure connection

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

Dual and triple switch versions provide multi-output for alarm and shutdown, pre-alarm and alarm, high/low limit or level staging functions.

Widely used throughout the process industries, the 400 Series provides threshold protection and control for many critical functions. Typical installations are found in industrial gas production, energy generation including pumps, turbines and compressors, pulp and paper, and water and wastewater treatment.



Specifications for UE Controls 400 Series pressure, vacuum, differential pressure and temperature switches (Type J402, dual switch output with internal hex screw adjustment, Models 356-376)

Pressure parameters . 358 -Set Point Range: 0 to 200 psi /Deadband: 1.5 to 8 psi /Over Range Pressure: 200 psi / Proof pressure: 250 psi or 361 -Set Point Range: 0 to 300 psi /Deadband: 2 to 9 psi /Over Range Pressure: 300 psi / Proof pressure: 250 psi or 376 -Set Point Range: 0 to 500 psi /Deadband: 3 to 12 psi /Over Range Pressure: 500 psi / Proof pressure: 575 psi
UEONLINE 400 Series Datasheet.pdf
Download

PRESSURE

  • Type J400 - One SPDT output; internal hex screw adjustment
  • Type J402 - Two SPDT outputs; internal hex screw adjustment
  • Type J403 - Three SPDT outputs; internal hex screw adjustment
  • Type H400 - One SPDT output; internal adjustment with reference dial
  • Type H402 - Two SPDT outputs; internal adjustment with reference dial
  • Type H403 - Three SPDT outputs; internal adjustment with reference dial

DIFFERENTIAL PRESSURE

  •  Type J400K - One SPDT output; internal hex screw adjustment
  • Type J402K - Two SPDT outputs; internal hex screw adjustment
  • Type H400K - One SPDT output; internal adjustment with reference dial
  • Type H402K - Two SPDT outputs; internal adjustment with reference dial

TEMPERATURE

  • Type B400 - Immersion stem; one SPDT output; internal adjustment with reference dial
  • Type B402 - Immersion stem; two SPDT outputs; internal adjustment with reference dial
  • Type B403 - Immersion stem; three SPDT outputs; internal adjustment with reference dial
  • Type C400 - Immersion stem; one SPDT output; internal hex screw adjustment
  • Type C402 - Immersion stem; two SPDT outputs; internal hex screw adjustment
  • Type C403 - Immersion stem; three SPDT outputs; internal hex screw adjustment
  • Type E400 - Bulb and capillary; one SPDT output; internal adjustment with reference dial
  • Type E402 - Bulb and capillary; two SPDT outputs; internal adjustment with reference dial
  • Type E403 - Bulb and capillary; three SPDT outputs; internal adjustment with reference dial
  • Type F400 - Bulb and capillary; one SPDT output; internal hex screw adjustment
  • Type F402 - Bulb and capillary; two SPDT outputs; internal hex screw adjustment
  • Type F403 - Bulb and capillary; three SPDT outputs; internal hex screw adjustment


  • UL listed and cUL certified. FM approved.
  • CE compliant to low voltage directive and pressure equipment directive.
  • Optional ATEX or EAC intrinsic safety compliance.
  • One, two or three switch outputs may be separated up to 100% of range.
  •  Wide variety of available options and pressure sensor modules.
  • Most models available for immediate delivery.
  • 1, 2 & 3 switch outputs
  • Epoxy-coated enclosure designed to meet enclosure type 4X
  • Wide variety of pressure sensors and materials
  •  Setting via reference dial or hex screw adjustment
  •  FM approved
  • Adjustable Ranges: "WC ranges: 300 "wc vacuum to 250 “wc pressure (-746,7 to 622,3 mbar) Pressure: 30 “Hg Vac to 6000 psi (-1,0 to 413,7 bar)
  • Differential Pressure: 1"wcd to 200 psid (2.5 mbar to 13,8 bar)
  • Temperature: -125 to 650 °F (-87.2 to 343.3 °C


  • AMBIENT TEMPERATURE: -40 to 160°F (-40 to 71°C); set point typically shifts less than 1% of range for LIMITS a 50°F (28°C) ambient temperature change
  •  SET POINT REPEATABILITY: Temperature models: ± 2% of full scale range Pressure: models 126-376, 520-535, 540-547, 570-572, S126B-S164B: ± 2% of full scale range; models 440-457, 550-559: ± 1% of full scale range; models 610-614: ± 3% of full scale range
  • SHOCK: Set point repeats after 15 G, 10 millisecond duration
  •  VIBRATION: Set point repeats after 2.5 G, 5-500 Hz
  • ENCLOSURE: Die cast aluminum, epoxy powder coated, gasketed, captive cover screws
  • ENCLOSURE CLASSIFICATION: Designed to meet enclosure type 4X requirements
  • SWITCH OUTPUT: One, two or three SPDT switches, may be separated up to 100% of range except models 521-524, 531-534: 50%; models 520, 525, 530, 535, 570-572: 30%; switches may be wired “normally open” or “normally closed”
  • ELECTRICAL RATING: 15 A 125/250/480 VAC resistive. Electrical switches have limited DC capabilities; at 24-30 VDC, 2A resistive and 1A inductive; at 125 VDC, 0.5A resistive and 0.03A inductive. Consult factory for additional information.
  • WEIGHT: Approx. 3 to 7.5 lbs.; varies with model
  •  ELECTRICAL CONNECTION: One 3/4” NPT and two 7/8” diameter knockouts
  • PRESSURE CONNECTION: All models 1/4” NPT (female) except models S126B-S164B, 520-535: 1/2” NPT (female); models 540-547: 1/8" NPT (female)
  • TEMPERATURE ASSEMBLY: ‘E’ types use the same assemblies as ‘F’ types, however, range spans are limited due to use of reference dials Bulb and capillary: 6 feet 304 stainless steel Immersion stem: models 120 &121: nickel-plated brass; optional 316L v stainless steel available
  • FILL Temperature Models: Non-toxic oil filled
  • TEMPERATURE DEADBAND: Type F typically 1% and type E, B & C typically 2% of range under laboratory conditions (70°F ambient circulating bath at rate of 1/2°F per minute change)
  • DIFFERENTIAL: Differential pressure indication available J400K, J402K models 147-S157B; PRESSURE accuracy approximately 1-1⁄2% mid 50% of range, 3% at ends; window is (OPTION M210) plexiglass and gasketed; indicator may be field adjusted for approximately ±1% accuracy at any set point within range




UNITED STATES AND CANADA

  • Type 400 & 402
  • UL Listed, cUL Certified
  • Pressure: UL 508; CSA C22.2 No. 14, file # E42272
  • Temperature: UL 873; CSA C22.2 No. 24, file # E10667
  • Type 403
  •  UL Recognized, cUL Recognized
  • Pressure: UL 508; CSA C22.2 No. 14, file # E42272
  •  Temperature: UL 873; CSA C22.2 No. 24, file # E10667

All Types

  • FM Approved
  • Pressure: Class 3510
  • Temperature: Class 3545

EUROPE

  • ATEX Directive (2014/34/EU)
  •  II 1 G Ex ia IIC T6 Ga (OPTIONAL – code M405)
  • Tamb = -50°C to +60°C
  • UL International DEMKO A/S (N.B.# 0539)
  • Certificate # DEMKO 11 ATEX 1105621X
  • EN 60079-0, 60079-11
  • Low Voltage Directive (LVD) (2014/35/EU)
  • Compliant to LVD
  • Products rated lower than 50 VAC and 75 VDC are outside of the scope of the LVD
  • Pressure Equipment Directive (PED) (2014/68/EU)
  • Compliant to PED
  • Products rated below 7.5 PSI are outside the scope of PED

EURASIAN CUSTOMS UNION (Russia, Belarus, Kazakhstan, Kyrgyzstan, and Armenia)

  •  EAC Customs Union Certificate (OPTIONAL – code M406)
  • 0Ex ia IICT6 Ga X
  • Tamb = -50°C to +60°C
  • NANIO CCVE Certified
  • Certificate RU C-US.AA87.B.00503/20 ГОСТ
  • 31610.0-2014 (IЕС 60079-0:2011), ГОСТ IEC 60079-1-2011, ГОСТ
  • 31610.11-2014 (IEC 60079-11-2011), ГОСТ 31610.26-2012 (IEC 60079-26:2006),
  •  ГОСТ IEC 60079-31-2013

CHINA

  • CCC (Optional code M408 for China nameplates with cert & logo)
  •  Ex ia IIC T6 Ga
  •  -50°C ≤ Tamb ≤ +60°C
  • CCC Certificate number: 2020322304002958
  • GB/T 3836.1-2021, GB/T 3836.4-2021

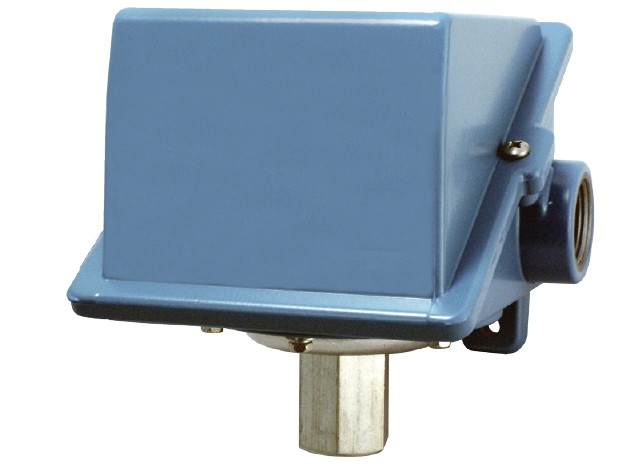

Product Image
