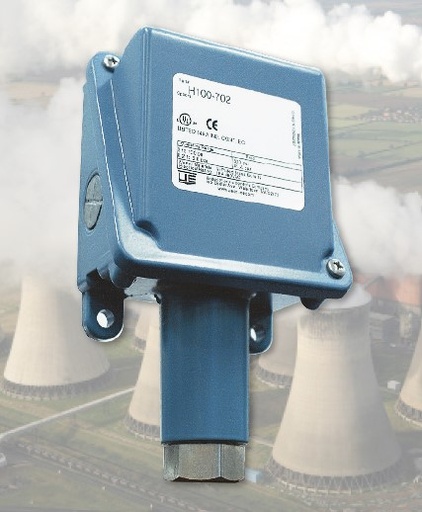

100 Series Pressure Switch H100Vacuum and Ultra low pressure models (Adjustable Range Vacuum to 10 psi)

https://www.doger.com/web/image/product.template/10448/image_1920?unique=31735b4

The 100 Series is simple to install and operate for alarm, safety and emergency shutdown applications where preserving process uptime, and protecting personnel and equipment are paramount.

Type H100 - One SPDT output; epoxy coated enclosure; internal adjustment with “High-Low” reference scale

Note:
You can view the optional products available by clicking ADD TO CAR.

  • Pressure parameters .

This combination does not exist.

United Electric Controls
Pressure switches, temperature switches, thermocouples, RTDs, pressure and temperature transmitters, gas detection

A rugged switch, the 100 Series is ideal for both heavy industry and the OEM, and carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.
Typical applications that utilize the 100 Series include controlling rotating equipment – pumps, turbines, and compressors, heat tracing, fire suppression systems, and fuel/gas trains.

Parameters available in the datasheet of the documents section

Specifications for 100 Series Pressure Switch H100Vacuum and Ultra low pressure models (Adjustable Range Vacuum to 10 psi)

Pressure parameters . 520 - Set Point Range: 300 Vac to 0 “wc /Deadband: 0.2 to 8 “wc /Over Range Pressure : 100 psi or 530 - Set Point Range: 300 Vac to 0 “wc /Deadband: 0.2 to 15 “wc /Over Range Pressure : 50 psi or 521 - Set Point Range: 10 Vac to 10 “wc /Deadband: 0.1 to 0.6 “wc /Over Range Pressure : 100 psi or 531 - Set Point Range: 10 Vac to 10 “wc /Deadband: 0.1 to 0.6 “wc /Over Range Pressure : 50 psi or 522 - Set Point Range: 50 Vac to 50 “wc /Deadband: 0.1 to 3 “wc /Over Range Pressure : 100 psi or 532 - Set Point Range: 50 Vac to 50 “wc /Deadband: 0.1 to 3 “wc /Over Range Pressure : 50 psi or 15737 - Set Point Range: 50 Vac to 50 “wc /Deadband: 0.5 to 7 “wc /Over Range Pressure : 100 psi or 523 - Set Point Range: 0.5 to 5 “wc /Deadband: 0.1 to 0.3 “wc /Over Range Pressure : 100 psi or 218 - Set Point Range: 30" Hg Vac to 0 /Deadband: 1 to 2"Hg /Over Range Pressure : 3 psi or 533 - Set Point Range: 0.5 to 5 “wc /Deadband: 0.1 to 0.3 “wc /Over Range Pressure : 50 psi or 524 - Set Point Range: 2.5 to 50 “wc /Deadband: 0.1 to 0.8 “wc /Over Range Pressure : 100 psi or 534 - Set Point Range: 2.5 to 50 “wc /Deadband: 0.1 to 0.8 “wc /Over Range Pressure : 50 psi or 525 - Set Point Range: 10 to 250 “wc /Deadband: 0.1 to 6 “wc /Over Range Pressure : 100 psi or 535 - Set Point Range: 30" Hg Vac to 0 “wc /Deadband: 1 to 2"Hg /Over Range Pressure : 3 psi
UEONLINE 100 Series Datasheet.pdf
Download
  • SIL 2 certified (SIL 3 capable) switch providing reliable local switching of final elements in safety instrumented systems (SIS)
  • Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or scale, and calibrated gauge
  • Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
  • Protect piping and vessels with heat trace/freeze protection temperature models


Product Image
100 Series Pressure Switch H100Vacuum and Ultra low pressure models (Adjustable Range Vacuum to 10 psi)
