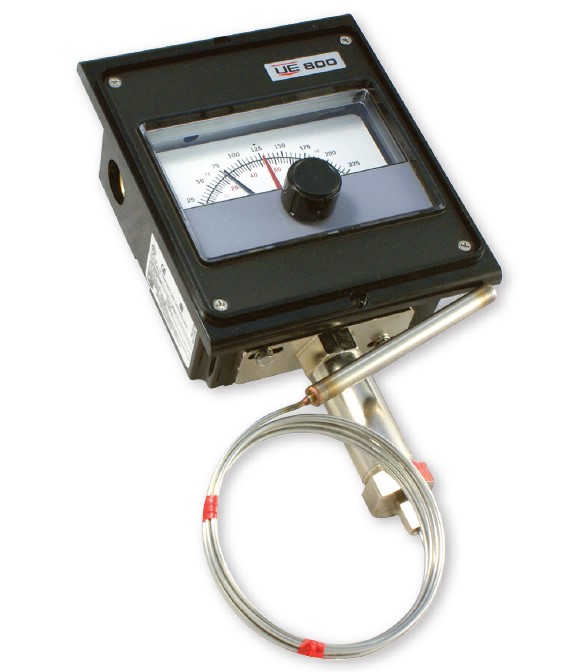

800 Series Temperature Switch

https://www.doger.com/web/image/product.template/10465/image_1920?unique=e0566cd

800 Series models control and indicate the temperature of food service appliances, ovens, packaging machines, HVAC equipment, and various temperature applications within process plants

  • 800 Series Type
  • Temperature parameters

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

For applications that require a visual display of process temperature
and set point, the 800 Series offers a highly readable four inch setting/
indication scale. It is available in two versions: a Lexan® enclosure
for enclosure type 1 or 4 applications (with option M300), and with
Lexan® window and epoxy-coated aluminum enclosure for Div. 1
explosion proof applications

Specifications for 800 Series Temperature Switch

800 Series Type 800 - Bulb and capillary; one SPDT output; external indication or 802 - Bulb and capillary; two SPDT outputs; external indication or 820E - Bulb and capillary; one SPDT output; external indication, explosion proof or 822E - Bulb and capillary; two SPDT outputs; external indication, explosion proof or T800 - Bulb and capillary; thermometer only with external indication
Temperature parameters 1BS - Set Point Range: -180 to 120 °F /Max. Temperature: 170°F or 2BS - Set Point Range: -125 to 350 °F /Max. Temperature: 400 °F or 3BS - Set Point Range: -125 to 500 °F /Max. Temperature: 550 °F or 4BS - Set Point Range: -40 to 120 °F /Max. Temperature: 170°F or 5BS - Set Point Range: -40 to 180 °F /Max. Temperature: 230 °F or 6BS - Set Point Range: 0 to 250 °F /Max. Temperature: 300 °F or 7BS - Set Point Range: -0 to 400 °F /Max. Temperature: 450 °F or 8BS - Set Point Range50 to 650 °F /Max. Temperature: 700 °F
UEONLINE 800 Series Datasheet.pdf
Download
  • Temperature indication and
  • control switching
  • Single or dual SPDT output
  • Stainless steel bulb & capillary
  • Simple to adjust via external knob
  • Explosion proof models are UL
  • listed, cUL certified, and ATEX
  • compliant
  • Optional Russian, Ukrainian, and
  • Chinese, flameproof or intrinsic
  • safety compliance
  • Optional thermowells and union
  • connectors available


Product Image

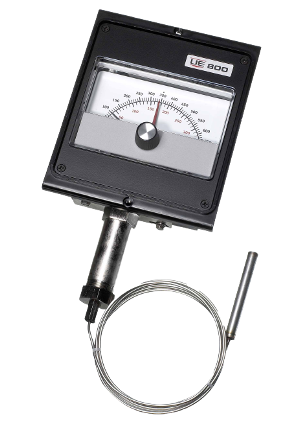

800 Series Temperature Switch
