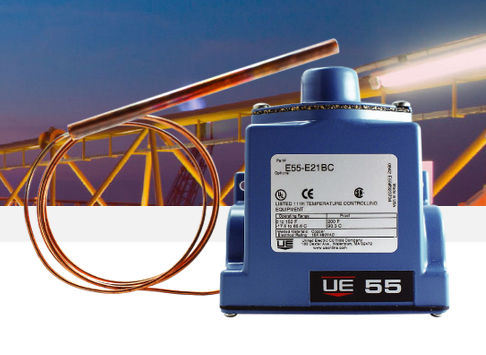

55 series Remote Mounting Temperature Switch and Control (E55 Models E20BC-E23BC)

https://www.doger.com/web/image/product.template/10439/image_1920?unique=d9e6fb1

E55: Bulb & capillary; one SPDT output; Epoxy coated enclosure; external adjustment with reference dial, tamper-resistant cover.

Copper bulb & capillary

  • Temperature parameters

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

55 series:  A single SPDT or dual SPDT output provides critical temperature alarm and emergency shutdown. Standard length thermal assemblies or custom-sized lengths are available to meet application requirements.

Typical applications that utilize the 55 Series include commercial ovens and dryers, heat tracing and freeze protection, and refrigeration.

Parameters available in the datasheet of the documents section


Specifications for 55 series Remote Mounting Temperature Switch and Control (E55 Models E20BC-E23BC)

Temperature parameters E20BC - Set Point Range: -130 to 120 °F /Max. Temperature: 170 °F / Dial Div. : 10 °F / Bulb Size : 3/8 x 4-1/2 OD x Length (inches) or E21BC - Set Point Range: 0 to 150°F /Max. Temperature: 200 °F / Dial Div. : 5 °F / Bulb Size : 3/8 x 7 OD x Length (inches) or E22BC - Set Point Range: 50 to 300 °F /Max. Temperature: 350 °F / Dial Div. : 10 °F / Bulb Size: 3/8 x 4-1/2OD x Length (inches) or E23BC - Set Point Range: 150 to 650 °F /Max. Temperature: 700 °F / Dial Div. : 25 °F / Bulb Size : 3/8 x 3-3/4 OD x Length (inches)
No Documents Uploaded
  • Single or dual 15 A switch output
  • Skeleton or Enclosure construction - designed to meet NEMA Type 4X
  •  Optional external manual reset
  • Compact size
  • Copper or stainless steel bulb & capillary
  • increase flexibility with multiple outputs
  • Panel or surface mount for trouble-free installation
  • External dial provides easy adjustment
  • Space saving construction

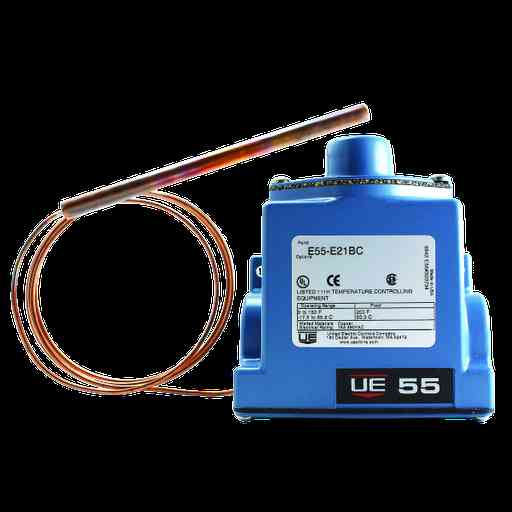

Product Image
