  2. 100 Series Pressure Switch H100K Medium Differential Pressure Models (up to 500 psid)

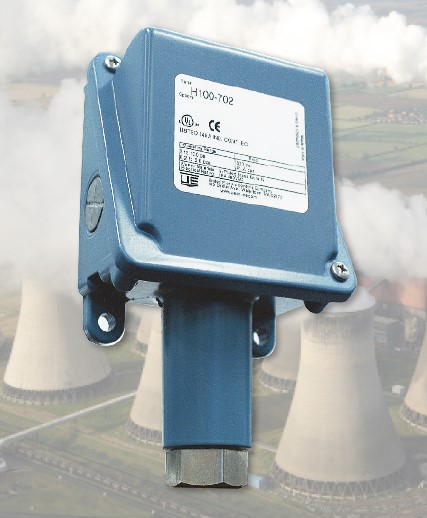

100 Series Pressure Switch H100K Medium Differential Pressure Models (up to 500 psid)

https://www.doger.com/web/image/product.template/10736/image_1920?unique=d1692e6

The 100 Series is simple to install and operate for alarm, safety and emergency shutdown applications where preserving process uptime, and protecting personnel and equipment are paramount.

Type H100K- One SPDT output; epoxy coated enclosure; internal adjustment with “High-Low” reference scale

Note:
You can view the optional products available by clicking ADD TO CAR.

  • Differential Pressure parameters

Esta combinación no existe.

United Electric Controls
Interruptores de presion, interruptores de temperatura, Termocuplas, RTDs, transmisores de temperatura y presioón, detección de gases

A rugged switch, the 100 Series is ideal for both heavy industry and the OEM, and carries global agency certification. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.
Typical applications that utilize the 100 Series include controlling rotating equipment – pumps, turbines, and compressors, heat tracing, fire suppression systems, and fuel/gas trains.

Parameters available in the datasheet of the documents section

Specifications for 100 Series Pressure Switch H100K Medium Differential Pressure Models (up to 500 psid)

Differential Pressure parameters 544 - Set Point Range: 2 to 20 psid /Deadband: 0.1 to 1.3 psi /Over Range Pressure : 1200 psi or 545 - Set Point Range: 5 to 50 psid /Deadband: 0.2 to 2.2 psi /Over Range Pressure : 1200 psi or 546 - Set Point Range: 10 to 125 psid /Deadband: 0.4 to 5 psi /Over Range Pressure : 1200 psi or 547 - Set Point Range: 50 to 250 psid /Deadband: 0.1 to 1.3 psi /Over Range Pressure : 1200 psi or 548 - Set Point Range: 100 to 500 psid /Deadband: 2 to 15 psi /Over Range Pressure : 1200 psi
UEONLINE 100 Series Datasheet.pdf
Download
  • SIL 2 certified (SIL 3 capable) switch providing reliable local switching of final elements in safety instrumented systems (SIS)
  • Quick and easy installation with ample access to wiring compartment and simple set point adjustment using reference dial or scale, and calibrated gauge
  • Application versatility achieved through a variety of ranges, microswitches, sensors and process connections
  • Protect piping and vessels with heat trace/freeze protection temperature models


Product Image
100 Series Pressure Switch H100K Medium Differential Pressure Models (up to 500 psid)
